MLウォール形状・寸法
|
| |
標準部寸法表

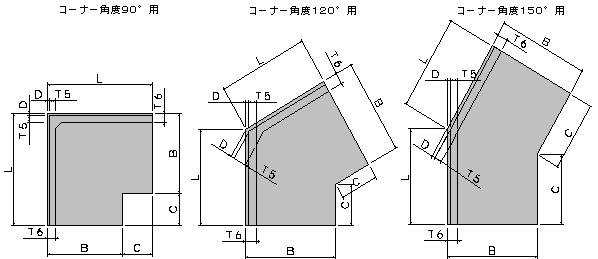

コーナー部 Ⅱ型、Ⅲ型/30°、Ⅲ型/25°形状図
|
| |
|
|
| |
|
コーナー部寸法表
|
|
(1)コーナー角度θ=90°の場合
a.Ⅱ型、Ⅲ型/30°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
T5
(mm) |
T6
(mm) |
D
(mm) |
C
(mm) |
参考質量
(kg) |
| 750-90 |
750 |
550 |
1000 |
102.5 |
109.0 |
100 |
100 |
102.5 |
110 |
7.5 |
450 |
515 |
| 1000-90 |
1000 |
800 |
1000 |
100.0 |
109.0 |
100 |
100 |
100.0 |
110 |
10.0 |
200 |
673 |
| 1250-90 |
1250 |
900 |
1200 |
117.5 |
128.7 |
130 |
130 |
117.5 |
130 |
12.5 |
300 |
1,196 |
| 1500-90 |
1500 |
1050 |
1400 |
115.0 |
128.7 |
130 |
130 |
115.0 |
130 |
15.0 |
350 |
1,676 |
| 1750-90 |
1750 |
1200 |
1600 |
142.5 |
158.4 |
160 |
160 |
142.5 |
160 |
17.5 |
400 |
2,728 |
| 2000-90 |
2000 |
1550 |
1700 |
140.0 |
158.4 |
160 |
160 |
140.0 |
160 |
20.0 |
150 |
3,309 |
| 2250-90 |
2250 |
1650 |
1900 |
167.5 |
188.1 |
190 |
190 |
167.5 |
190 |
22.5 |
250 |
4,908 |
| 2500-90 |
2500 |
1800 |
2100 |
165.0 |
188.1 |
190 |
190 |
165.0 |
190 |
25.0 |
300 |
6,037 |
| 2750-90 |
2750 |
1950 |
2300 |
192.5 |
217.8 |
220 |
220 |
192.5 |
220 |
27.5 |
350 |
8,397 |
| 3000-90 |
3000 |
2000 |
2430 |
190.0 |
217.8 |
220 |
220 |
190.0 |
220 |
30.0 |
60 |
9,671 |
|
|
↑
|
| |
|
|
b.Ⅲ型/25°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
T5
(mm) |
T6
(mm) |
D
(mm) |
C
(mm) |
参考質量
(kg) |
| 750-90 |
750 |
550 |
1000 |
102.5 |
109.0 |
100 |
100 |
102.5 |
110 |
7.5 |
450 |
515 |
| 1000-90 |
1000 |
800 |
1000 |
100.0 |
109.0 |
100 |
100 |
100.0 |
110 |
10.0 |
200 |
673 |
| 1250-90 |
1250 |
900 |
1200 |
117.5 |
128.7 |
130 |
130 |
117.5 |
130 |
12.5 |
300 |
1,196 |
| 1500-90 |
1500 |
1050 |
1400 |
115.0 |
128.7 |
130 |
130 |
115.0 |
130 |
15.0 |
350 |
1,676 |
| 1750-90 |
1750 |
1200 |
1600 |
142.5 |
158.4 |
160 |
160 |
142.5 |
160 |
17.5 |
400 |
2,728 |
| 2000-90 |
2000 |
1550 |
1700 |
140.0 |
158.4 |
160 |
160 |
140.0 |
160 |
20.0 |
150 |
3,309 |
| 2250-90 |
2250 |
1650 |
1900 |
167.5 |
188.1 |
190 |
190 |
167.5 |
190 |
22.5 |
250 |
4,908 |
| 2500-90 |
2500 |
1800 |
2100 |
165.0 |
188.1 |
190 |
190 |
165.0 |
190 |
25.0 |
300 |
6,037 |
| 2750-90 |
2750 |
1950 |
2300 |
192.5 |
217.8 |
220 |
220 |
192.5 |
220 |
27.5 |
350 |
8,397 |
| 3000-90 |
3000 |
2000 |
2430 |
190.0 |
217.8 |
220 |
220 |
190.0 |
220 |
30.0 |
60 |
9,671 |
|
|
↑
|
| |
|
(2)コーナー角度θ=120°の場合
a.Ⅱ型、Ⅲ型/30°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
T5
(mm) |
T6
(mm) |
D
(mm) |
C
(mm) |
参考質量
(kg) |
| 750-120 |
750 |
550 |
1000 |
102.5 |
109.0 |
100 |
100 |
102.5 |
110 |
7.5 |
683 |
551 |
| 1000-120 |
1000 |
750 |
1000 |
100.0 |
109.0 |
100 |
100 |
100.0 |
110 |
10.0 |
567 |
731 |
| 1250-120 |
1250 |
950 |
1000 |
117.5 |
128.7 |
130 |
130 |
117.5 |
130 |
12.5 |
452 |
1,083 |
| 1500-120 |
1500 |
1100 |
1200 |
115.0 |
128.7 |
130 |
130 |
115.0 |
130 |
15.0 |
565 |
1,560 |
| 1750-120 |
1750 |
1300 |
1300 |
142.5 |
158.4 |
160 |
160 |
142.5 |
160 |
17.5 |
549 |
2,403 |
| 2000-120 |
2000 |
1500 |
1400 |
140.0 |
158.4 |
160 |
160 |
140.0 |
160 |
20.0 |
534 |
2,947 |
| 2250-120 |
2250 |
1700 |
1500 |
167.5 |
188.1 |
190 |
190 |
167.5 |
190 |
22.5 |
519 |
4,177 |
| 2500-120 |
2500 |
1950 |
1600 |
165.0 |
188.1 |
190 |
190 |
165.0 |
190 |
25.0 |
474 |
4,955 |
| 2750-120 |
2750 |
2050 |
1800 |
192.5 |
217.8 |
220 |
220 |
192.5 |
220 |
27.5 |
616 |
7,072 |
| 3000-120 |
3000 |
2200 |
2000 |
190.0 |
217.8 |
220 |
220 |
190.0 |
220 |
30.0 |
730 |
8,600 |
|
|
↑
|
| |
|
|
b.Ⅲ型/25°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
T5
(mm) |
T6
(mm) |
D
(mm) |
C
(mm) |
参考質量
(kg) |
| 750-120 |
750 |
650 |
1000 |
102.5 |
109.0 |
100 |
100 |
102.5 |
110 |
7.5 |
625 |
582 |
| 1000-120 |
1000 |
800 |
1000 |
100.0 |
109.0 |
100 |
100 |
100.0 |
110 |
10.0 |
538 |
744 |
| 1250-120 |
1250 |
1000 |
1000 |
117.5 |
128.7 |
130 |
130 |
117.5 |
130 |
12.5 |
423 |
1,097 |
| 1500-120 |
1500 |
1150 |
1200 |
115.0 |
128.7 |
130 |
130 |
115.0 |
130 |
15.0 |
536 |
1,578 |
| 1750-120 |
1750 |
1350 |
1300 |
142.5 |
158.4 |
160 |
160 |
142.5 |
160 |
17.5 |
521 |
2,423 |
| 2000-120 |
2000 |
1600 |
1400 |
140.0 |
158.4 |
160 |
160 |
140.0 |
160 |
20.0 |
476 |
2,986 |
| 2250-120 |
2250 |
1750 |
1500 |
167.5 |
188.1 |
190 |
190 |
167.5 |
190 |
22.5 |
490 |
4,200 |
| 2500-120 |
2500 |
1950 |
1600 |
165.0 |
188.1 |
190 |
190 |
165.0 |
190 |
25.0 |
474 |
4,955 |
| 2750-120 |
2750 |
2050 |
1800 |
192.5 |
217.8 |
220 |
220 |
192.5 |
220 |
27.5 |
616 |
7,072 |
| 3000-120 |
3000 |
2200 |
2000 |
190.0 |
217.8 |
220 |
220 |
190.0 |
220 |
30.0 |
730 |
8,600 |
|
|
↑
|
| |
|
(3)コーナー角度θ=150°の場合
a.Ⅱ型、Ⅲ型/30°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
T5
(mm) |
T6
(mm) |
D
(mm) |
C
(mm) |
参考質量
(kg) |
| 750-150 |
750 |
550 |
1000 |
102.5 |
109.0 |
100 |
100 |
102.5 |
110 |
7.5 |
853 |
577 |
| 1000-150 |
1000 |
750 |
1000 |
100.0 |
109.0 |
100 |
100 |
102.5 |
110 |
7.5 |
853 |
778 |
| 1250-150 |
1250 |
950 |
1000 |
117.5 |
128.7 |
130 |
130 |
117.5 |
130 |
12.5 |
759 |
1,157 |
| 1500-150 |
1500 |
1050 |
1000 |
115.0 |
128.7 |
130 |
130 |
115.0 |
130 |
15.0 |
719 |
1,365 |
| 1750-150 |
1750 |
1250 |
1000 |
142.5 |
158.4 |
160 |
160 |
142.5 |
160 |
17.5 |
665 |
1,944 |
| 2000-150 |
2000 |
1450 |
1000 |
140.0 |
158.4 |
160 |
160 |
140.0 |
160 |
20.0 |
612 |
2,211 |
| 2250-150 |
2250 |
1600 |
1100 |
167.5 |
188.1 |
190 |
190 |
167.5 |
190 |
22.5 |
671 |
3,213 |
| 2500-150 |
2500 |
1800 |
1100 |
165.0 |
188.1 |
190 |
190 |
165.0 |
190 |
25.0 |
618 |
3,550 |
| 2750-150 |
2750 |
2000 |
1200 |
192.5 |
217.8 |
220 |
220 |
192.5 |
220 |
27.5 |
664 |
4,933 |
| 3000-150 |
3000 |
2100 |
1400 |
190.0 |
217.8 |
220 |
220 |
190.0 |
220 |
30.0 |
837 |
6,283 |
|
|
↑
|
| |
|
|
b.Ⅲ型/25°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
T5
(mm) |
T6
(mm) |
D
(mm) |
C
(mm) |
参考質量
(kg) |
| 750-150 |
750 |
650 |
1000 |
102.5 |
109.0 |
100 |
100 |
102.5 |
110 |
7.5 |
826 |
617 |
| 1000-150 |
1000 |
800 |
1000 |
100.0 |
109.0 |
100 |
100 |
100.0 |
110 |
10.0 |
786 |
797 |
| 1250-150 |
1250 |
950 |
1000 |
117.5 |
128.7 |
130 |
130 |
117.5 |
130 |
12.5 |
488 |
1,180 |
| 1500-150 |
1500 |
1150 |
1000 |
115.0 |
128.7 |
130 |
130 |
115.0 |
130 |
15.0 |
698 |
1,409 |
| 1750-150 |
1750 |
1350 |
1000 |
142.5 |
158.4 |
160 |
160 |
142.5 |
160 |
17.5 |
638 |
1,994 |
| 2000-150 |
2000 |
1500 |
1000 |
140.0 |
158.4 |
160 |
160 |
140.0 |
160 |
20.0 |
598 |
2,234 |
| 2250-150 |
2250 |
1650 |
1100 |
167.5 |
188.1 |
190 |
190 |
167.5 |
190 |
22.5 |
658 |
3,243 |
| 2500-150 |
2500 |
1900 |
1100 |
165.0 |
188.1 |
190 |
190 |
165.0 |
190 |
25.0 |
591 |
3,605 |
| 2750-150 |
2750 |
2000 |
1200 |
192.5 |
217.8 |
220 |
220 |
192.5 |
220 |
27.5 |
664 |
4,933 |
| 3000-150 |
3000 |
2150 |
1400 |
190.0 |
217.8 |
220 |
220 |
190.0 |
220 |
30.0 |
824 |
6,327 |
|
|
↑
|
| 表以外の角度については、別途応談致します。 |
|
